    SGH340 2inch x 4inch Truss Nail Plate with galvanized Z275 for Trusses

    Ask Lasest Price
    Brand Name : X MESH
    Model Number : X MESH-Gang Nail-001
    Certification : ISO9001:2015
    Price : USD0.15-0.5/PC
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500TONS/MONTH
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    SGH340 2inch x 4inch Truss Nail Plate with galvanized Z275 for Trusses

    SGH340 2inch x 4inch Truss Nail Plate with galvanized Z275 for Trusses

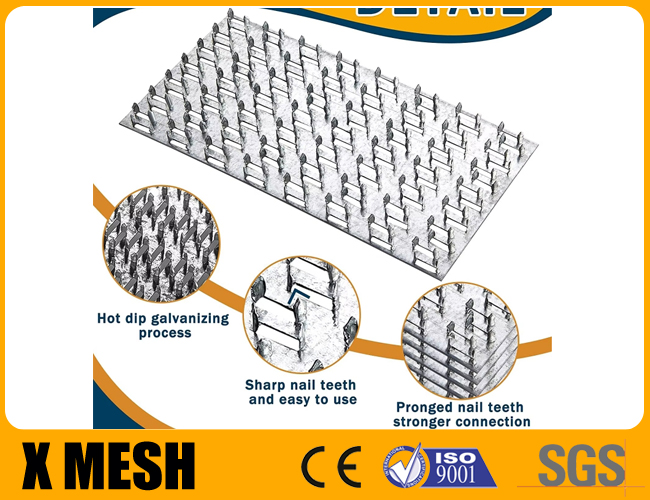

    Truss Nail Plate Introduction:

    Hot dipped galvanized truss nail plate

    Truss nail plates are punched metal plates featuring integral teeth, delivering the strength required for connecting timber in trussed rafters and applied using hydraulic presses.

    Product Name

    Truss Nail Plate

    Surface Treatment

    Hot Galvanized 275g/m2

    Thickness

    1mm

    Hole Width

    2"

    Hole Length

    4"

    Nail Height

    9mm

    Plate Width

    1" - 12"

    Plate Length

    2" - 24"

    Grade

    40

    Packing

    Carton, Pallet or Wooden Case

    Truss Nail Plate Specifications:

    Catalog number

    Description

    Gauge

    Case quantity

    Case weight

    SP314500

    1 1/2″ X 3″

    14

    500

    42

    SP514100

    1 1/2″ X 5″

    14

    100

    13

    SP514100-3

    3″ X 5″

    14

    100

    60

    SP316100

    1 1/2″ X 3″

    16

    100

    7

    SP316500

    1 1/2″ X 3″

    16

    500

    35

    SP416100

    1 1/2″ X 4″

    16

    100

    10

    SP516100

    1 1/2″ X 5″

    16

    100

    11

    SP516250

    1 1/2″ X 5″

    16

    250

    27

    SP616100

    1 1/2″ X 6″

    16

    100

    14

    SP516100-2

    2″ X 5″

    16

    100

    15

    SP516100-3

    3″ X 5″

    16

    100

    4

    SP616100-3

    3″ X 6″

    16

    100

    28

    SP318100

    1 1/2″ X 3″

    18

    100

    4

    SP518100

    1 1/2″ X 5″

    18

    100

    8

    SP618100

    1 1/2″ X 6″

    18

    100

    10

    SP518100-2

    2″ X 5″

    18

    100

    9

    SP518100-3

    3″ X 5″

    18

    100

    13

    SP320100

    1 1/2″ X 3″

    20

    100

    4

    SP520100

    1 1/2″ X 5″

    20

    100

    7

    SP620100

    1 1/2″ X 6″

    20

    100

    8

    SP520100-2

    2″ X 5″

    20

    100

    8

    SP520100-3

    3″ X 5″

    20

    100

    13

    Truss Nail Plate Feature:

    1. Quick Delivery
    2. OEM can be acceptable.
    3. Good quality with competitive price
    4. Some Quantity is OK.

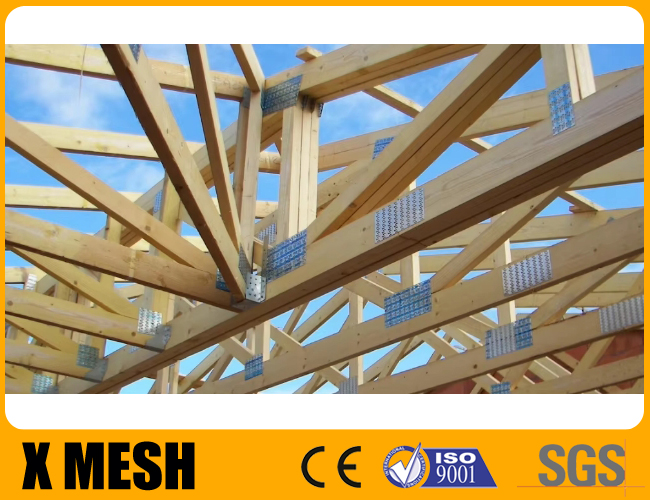

    Truss Nail Plate Application:

    Prefabricated Wood Truss
    Portable Building/Shed
    Railroad Crossties
    Pallet and Crating
    Manufactured Housing
