    Marine Grade 316 Sus Fly Screen Mesh Security Insect Screen Roll Black Color

    Ask Lasest Price
    Brand Name : X MESH
    Model Number : X MESH-Stainless Steel Mesh-002
    Certification : ISO9001:2015
    Price : USD25.50-30.85/m2
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000m2/week
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

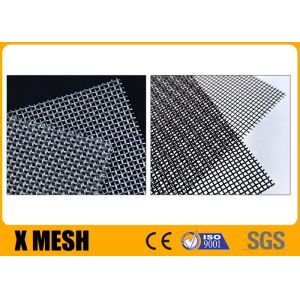

    Marine Grade 316 Sus Fly Screen Mesh Security Insect Screen Roll Black Color

    Marine Grade 316 Sus Fly Screen Mesh Security Insect Screen Roll In Stock With Black Color

    Security Insect Screen Introduction:


    The mesh is usually made of stainless steel and stretched in a frame of wood or metal. It serves to keep leaves, debris, insects, birds, and other animals from entering a building or a screened structure such as a porch, without blocking fresh air-flow.

    Stainless steel window screening is physically the strongest and most corrosion resistant with almost an unlimited life.


    Product name

    Security Insect Screen

    Material

    302,304,304L,316,316L stainless steel wire

    Wire Diameter

    0.5mm---1.2mm

    Mesh/inch

    10x10mesh, 11x11mesh, 12x12mesh, 14x14mesh

    Width

    1200mm

    Length

    2400mm

    Application

    For Doors

    Color

    Black

    Feature

    Acid Proof

    Packing

    Plastic film & Pallet Packing


    Security Insect Screen Specification:


    Material

    Mesh Size

    Hole Size

    Sheet Size

    General tensile 316 Marine grade stainless steel wire

    8mesh×1.2mm

    2.0mm

    Width×Length

    750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm

    9mesh×1.0mm

    1.8mm

    10mesh×0.8mm

    1.8mm

    10mesh×0.9mm

    1.6mm

    10mesh×1.0mm

    1.5mm

    11mesh×0.8mm

    1.5mm

    11mesh×0.9mm

    1.4mm

    12mesh×0.7mm

    1.4mm

    12mesh×0.8mm

    1.3mm

    12mesh×0.9mm

    1.2mm

    14mesh×0.5mm

    1.3mm

    14mesh×0.55mm

    1.2mm

    14mesh×0.6mm

    1.2mm

    18mesh×0.32mm

    1.0mm


    High tensile 316 Marine grade stainless steel wire

    8mesh×1.2mm

    2.0mm

    Width×Length

    750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm

    8mesh×1.3mm

    1.9mm

    9mesh×0.9mm

    1.9mm

    9mesh×1.0mm

    1.8mm

    10mesh×0.9mm

    1.6mm

    10mesh×1.0mm

    1.5mm

    11mesh×0.8mm

    1.5mm

    11mesh×0.9mm

    1.4mm

    1.Sheet Size:Can be customized

    2.Coating Color:Black/Gray/White

    3.Packing:50 pcs per polywood box


    Product name

    Specification

    Introduction

    Mesh/Inch

    Wire diameter

    Panel size

    (mm)


    Stainless steel fly

    screen mesh

    10 × 10

    0.9mm

    1500 x 2500

    1300 x 2600

    1200 x 2000

    1200 x 2400

    1000 x 2400

    Material: T 304, T 316

    11 × 11

    0.8mm

    12 × 12

    0.7mm



    Security Insect Screen Benifites:

    • Excellent resistance to corrosion and impact.

    • Quality meets the demands of GB/T 1220–2007 Stainless Steel Rod standard grade.

    • Good privacy protection and aesthetic effect.

    • Easy to install with flat and straight surface.

    • Good air circulation & high quality daylighting.


    Security Insect Screen Our Testing Standards:


    1. Diagonal Deviation, strict controls of +/- 5mm
    2. Fine Grinding - The Surface Treatment Of 0.03mm
    3. Double Plain Weave High Hardness To Bulletproof
    4. Precipitation Of Metal Cons ,Non Magnetic
    5. Steel Wire After Micron Grade Precision Machining


    Security Insect Screen Standards:

    1. Knife Shear Test(AS5039-2008)
    2. Anti-Jemmy Test(AS509-2008)
    3. Pull Test(AS5039-2008)
    4. Durable more than 10 years(AS2331.31-2001)
    5. 3006 Hour Salt Spray Tests, 534 hours UV Test
    6. Aluminium Frame Tests
    7. Stainless Mesh Tests


    Security Insect Screen Application:

    Widely used in civil construction and industrial manufacturing, especially in the coastal and other corrosive work environment is more popular. For example, the usage of high-grade office buildings, residential buildings, and the properties of the door, orchard preferred protection products.
