    2x1x1 Meters Hexagonal Gabion Wire Mesh For Rock Retaining Walls

    Ask Lasest Price
    Brand Name : X MESH
    Model Number : X MESH-Gabion Wire Mesh A10
    Certification : ISO9001:2015
    Price : USD2.00-USD5.50/m2
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000m2/week
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    2x1x1 Meters Hexagonal Gabion Wire Mesh For Rock Retaining Walls

    Hexagonal Wire Mesh Wall Basket , 2x1x1meters Gabion Wire Mesh For Rock Retaining Walls

    Gabion Wire Mesh Introduction:

    The River Mattresses and mattresses are manufactured in strict accordance with the SANS 1580 and site installations are also in accordance with the latest SANS 1200 specification.

    Our mesh is hexagonal in shape meeting with the 80×100 mm mesh aperture for gabions with a mesh wire diameter of 2.7mm and selvedge wire of 3.4mm diameter.

    All measurements are in metres

    Product name

    Gabion Wire Mesh

    Color

    Silver

    Series

    Hot Galvanized

    Type

    Hexagonal

    Gabion Size

    2m*1m*1m

    Mesh Type

    8cm*10cm

    Border Wire

    3.2mm

    Feature

    Beautiful & Long using Life

    Application

    for Landscaping

    Packing

    Plastic film & Pallet

    Gabion Wire Mesh Specification:

    Opening
    (mm)

    Wire Diameter(Metal Wire) (mm)

    Wire Diameter (PVC Coate)/ Inner/Outside(mm)

    Strands

    60X80

    φ2.0-2.8

    φ2.0/3.0-2.5/3.5

    3

    80X100

    φ2.0-3.2

    φ2.0/3.0-2.8/3.8

    3

    80X120

    φ2.0-3.2

    φ2.0/3.0-2.8/3.8

    3

    100X120

    φ2.0-3.4

    φ2.0/3.0-2.8/3.8

    3

    100X150

    φ2.0-3.4

    φ2.0/3.0-2.8/3.8

    3

    120X150

    φ2.0-4.0

    φ2.0/3.0-3.0/4.0

    3

    Typical Gabion Basket Sizes

    Length, m

    Width, m

    Height, m

    Number of

    Cells, each

    Volume, m³

    2.0

    1.0

    1.0

    2.0

    2.0

    3.0

    1.0

    1.0

    3.0

    3.0

    4.0

    1.0

    1.0

    4.0

    4.0

    2.0

    1.0

    0.5

    2.0

    1.0

    3.0

    1.0

    0.5

    3.0

    1.5

    4.0

    1.0

    0.5

    4.0

    2.0

    2.0

    1.0

    0.3

    2.0

    0.6

    3.0

    1.0

    0.3

    3.0

    0.9

    4.0

    1.0

    0.3

    4.0

    1.2

    Gabion Wire Mesh Standard:

    The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating. The PVC coating is UV stabilized as per ASTM A 975.

    Selvedge / Edge wire which is a thicker and heavier wire is used to reinforce the edges and transverse diaphragm. It gives greater rigidity and shape to the Gabion Basket.

    Gabion Wire Mesh Feature:

    We always supply 3% lacing wire along with the material, which are used to assemble and interconnect empty units, to close and secure stone-filled units, and for internal stiffeners. Other options are available, such as fasteners, stiffeners, hog rings.

    Gabion Wire Mesh Application:

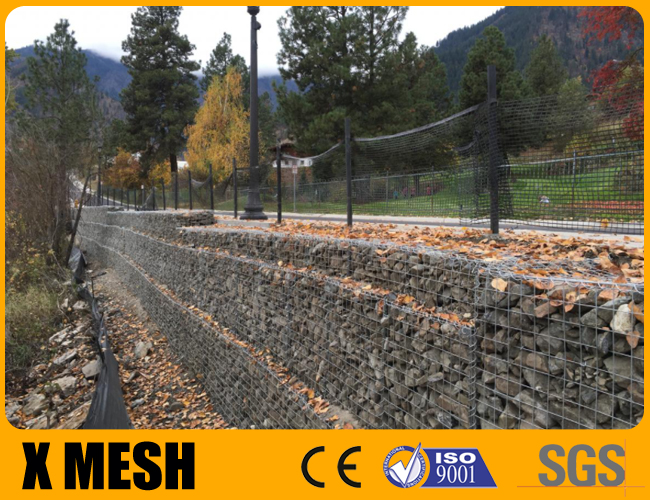

    • • Retaining wall structures.

      • Decorative fence walls.

      • Prevention of current scour and erosion control.

      • Bridge protection.

      • Hydraulic structures, dams and culverts.

      • Embankment protection.

      • Rockfall prevention and soil erosion protection.

      • Landscaping.
