    Green Powder Coated Security Metal Fencing Pale Thickness 3mm For Power Plant

    Ask Lasest Price
    Brand Name : X MESH
    Model Number : X MESH-Palisade Fence010
    Certification : ISO9001:2015
    Price : USD25.00-75.00/Set
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 5000sets/week
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Green Powder Coated Security Metal Fencing Pale Thickness 3mm For Power Plant

    Green Powder Coated Pale thickness 3mm Security Metal Fencing for power plant

    Security Metal Fencing Description:

    Palisade Fence, as effective security fencing, The forbidding appearance, inherent strength and high damage resistance make the palisade fencing one of the best choices of premise protection.

    Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foot-hold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.

    Name

    Security Metal Fencing

    Material

    Q235 Steel

    Height

    1.8m, 2.2m, 2.4m, 3.0m

    Width

    2.75m

    Pale Thickness

    2/2.5/3mm

    Series

    Galvanized & Powder Coated

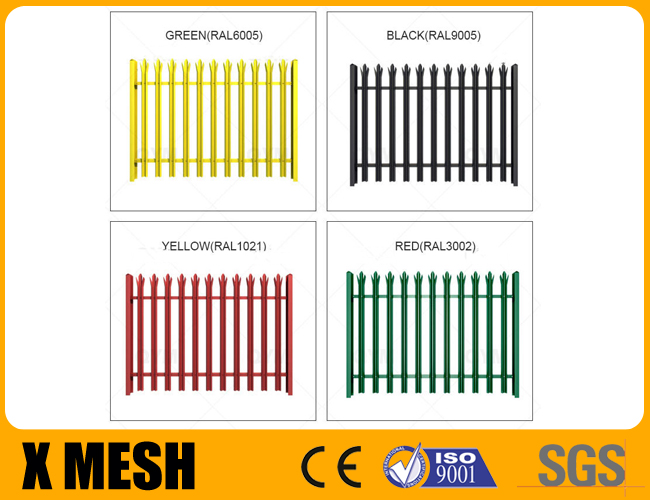

    Color

    Green RAL 6005

    Application

    for power plant

    Feature

    Crossion Resistance & Durable

    Packing

    Pallet/Wooden Case

    Security Metal Fencing Specification:

    Specification of W-Section Type palisade fence

    Panel Size

    W-Section Pale: 70 mm

    Horizontal Rail

    Post

    Height

    Width

    Pale thickness

    Qty: Pale

    Angle Steel

    Square Post

    I Post

    1.8 m

    2.75 m

    2/2.5/3 mm

    17 pcs

    40 × 40 × 4 mm, 50× 50 × 6 mm

    60 × 60 mm, 80 × 80 mm, 100 × 100 mm

    100 × 55 mm

    2.1 m

    2.75 m

    2/2.5/3 mm

    17 pcs

    2.4 m

    2.75 m

    2/2.5/3 mm

    17 pcs

    3.0 m

    2.75 m

    2/2.5/3/3.5 mm

    17 pcs

    W-section Pale: 62 mm

    1.8 m

    2.75 m

    1.5/2/2.5 mm

    17 pcs

    40 × 40 × 4 mm, 50× 50 × 6 mm

    60 × 60 mm, 80 × 80 mm, 100 × 100 mm

    100 × 55 mm

    2.1 m

    2.75 m

    1.5/2/2.5 mm

    17 pcs

    2.4 m

    2.75 m

    1.5/2/2.5 mm

    17 pcs

    3.0 m

    2.75 m

    1.5/2/2.5 mm

    17 pcs

    D-Section Pale: 65 mm

    Panel Size

    D-Section Pale: 65 mm

    Horizontal Rail

    Post

    Height

    Width

    Pale thickness

    Qty: Pale

    Angle Steel

    Square Post

    I Post

    1.8 m

    2.75 m

    1.5/2/2.5/3 mm

    17 pcs

    40 × 40 × 4 mm, 50× 50 × 5 mm

    60 × 60 mm, 80 × 80 mm, 100 × 100 mm

    100 × 55 mm

    2.1 m

    2.75 m

    1.5/2/2.5/3 mm

    17 pcs

    2.4 m

    2.75 m

    1.5/2/2.5/3 mm

    17 pcs

    3.0 m

    2.75 m

    1.5/2/2.5/3 mm

    17 pcs

    Pales-"W" section

    Most useful vetical type of pales for d section galvanized palisade fence, which is always the customers' first choice for pales .

    width

    thickness

    surface treatment

    head

    65 mm
    68 mm
    70 mm

    2.0 mm
    2.5 mm
    3.0 mm

    powder painted
    hot dipped galvanized only 450 grams per square meter

    triple pointed top
    single pointed top
    round top
    round and notch top

    Pales-"D" section

    Compared with "W" profile pales, "D" profile is more economical.

    Post- H Type

    As a connection pipe between the fence panel, H type is the most useful way.

    size

    thickness

    surface treatment

    head

    100x55mm 100x68mm
    120x74mm

    3.5 mm
    4.0 mm
    4.5 mm
    5.0 mm

    powder painted
    hot dipped galvanized only 450 grams per square meter

    cut sharp

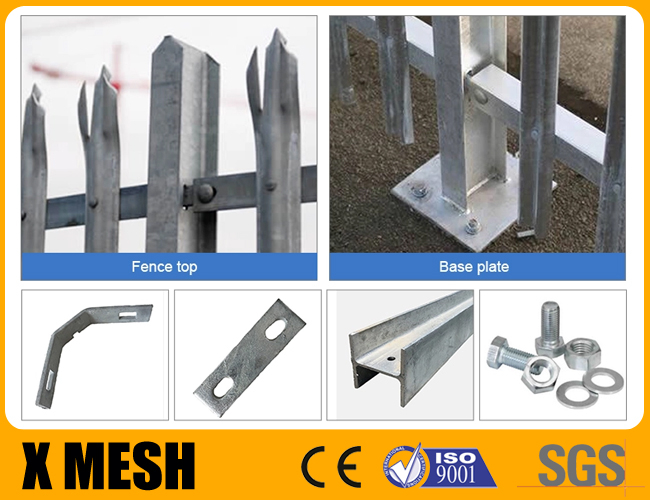

    Rail- Angle Iron

    It is the connection between pales and IPE post, which make the fence as a whole panel.

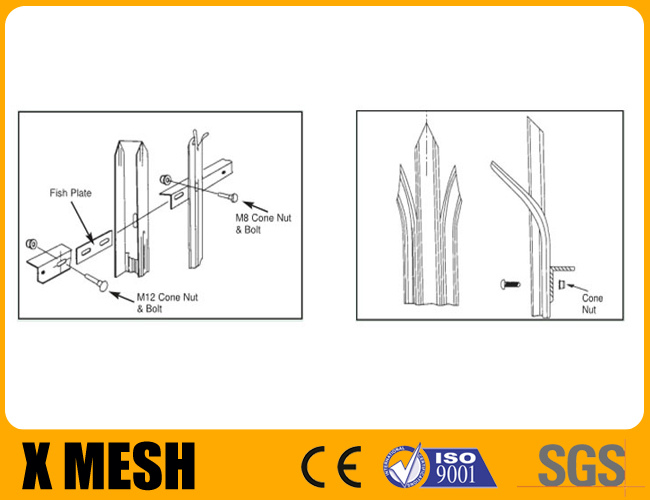

    Fittings- Fish plate, Bolts & Nuts(M8x40,M12x30)

    Fish plate is used as the connection between the H post and the angle rail.

    Security Metal Fencing Feature:

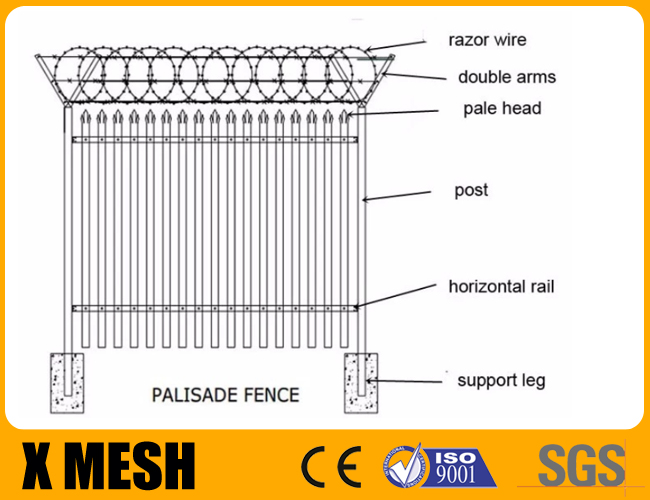

    • Palisade fence: One pointed, triple pointed, rounded, rounded & notched and square top. Palisade gate: Singular leaf or double leaf, swing or sliding gate, cantilever gate. Steel palisade fence: Made of low carbon steel, mild steel, hot or cold rolled steel. Galvanized palisade fence: Palisade fence or palisade gate can be finished with hot-dipped or electric galvanized. Palisade pales: The pales can be W section, D section and angle section. Palisade post: The palisade posts have square type and RSJ beam type. Palisade rail: Angle type with slots to fix. Palisade fittings: Connecting parts include fishplates, post clamps, bolts and nuts.

    Security Metal Fencing Application:

    Palisade is the ideal solution for any business, school or public space in need of a strong, durable perimeter.

    Powder coating in an array of colours means that this product can be matched to corporate and brand identities or

    customised to assimilate with surrounding environments.

    Whye Choose us:

    1.Our factory specialize in design,manufacturing galvanized steel or aluminium fence, railing etc

    2. Experienced sales team, engineer team, designer team and skillful workers.

    3. Advanced equipment, mature production technology, strong production capability.

    3. Our products surface is made of branded powder, with strong lacquer coating and strong adhsion Strict quality control system, environment friendly and anti-corrosion.

    4. Perfect after-sales service,15-year maintenance.

    5. Assembled product is convenient for transportation
