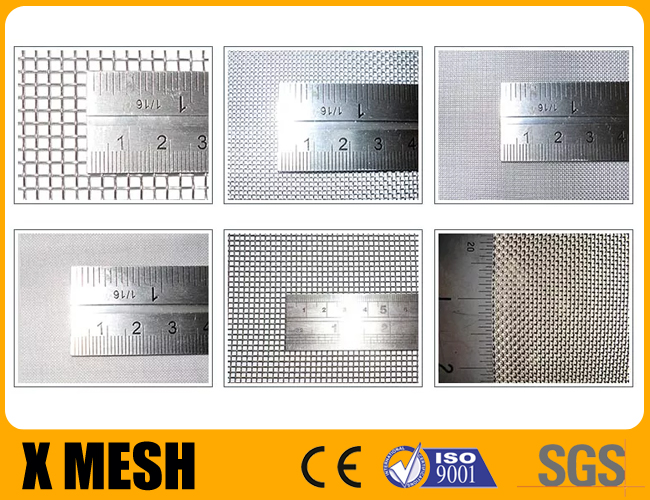

20 x 20 Mesh Size .025mm Wire Diameter 25m Length Stainless Steel Woven Mesh

Stainless Steel Woven Mesh Introduction:

Woven wire mesh products, also known as woven wire cloth, are woven on looms, a process that is similar to the one used to weave clothing. The mesh can consist of various crimping patterns for the interlocking segments. This interlocking method, which entails the precise arrangement of the wires over and under one another prior to crimping them into place, creates a product that’s strong and reliable. The high-precision manufacturing process makes woven wire cloth more labor-intensive to produce therefore it is typically more expensive than welded wire mesh.

Stainless Steel Woven Mesh Specification:

Stainless Steel Woven Mesh Material Details:

Common Woven Wire Cloth Materials

Carbon Steel: Low, High, Oil Tempered

Stainless Steel: Non-Magnetic Types 304, 304L, 309, 310, 316, 316L, 317, 321, 330, 347; Magnetic Types 410, 430

Copper and Copper Alloys: Copper, Brass, Bronze, Phosphor Bronze

Aluminum and Aluminum Alloys: 1350-H19

Nickel and Nickel Alloys: Nickel, Monel 400, Hastelloy B, Hastelloy C, Inconel 600, Incoloy 800, Nichrome I, Nichrome V

Woven Wire Cloth Weave Styles:

Plain/Double: This standard woven wire cloth weave type produces square openings where the warp wire alternately passes over and under the fill wire at right angles.

Twill Square: Typically used for applications that require managing heavier loads and finer filtration, twill square woven wire mesh exhibits a distinctive parallel diagonal pattern.

Twill Dutch: Twill Dutch is known for its superior strength, which is achieved by packing a high volume of wire in targeted areas of the weave. This woven wire cloth style can also filter particles as small as two microns.

Reverse Plain Dutch: This woven wire weave style features a large warp wire and smaller shute wire count that the Plain or Twill Dutch styles.

Plain Dutch: The Plain Dutch style features diagonally slanted openings that are difficult to see, but produces a strong, compact wire mesh that works well for filtering cloth applications.

Stainless Steel Woven Mesh Application:

​The remarkable strength and versatility of woven wire mesh products make them an excellent choice for numerous applications, including:

Sifting and sizing

Architectural applications when aesthetics are important

Infill panels that can be used for pedestrian partitions

Filtration and separation

Glare control

RFI and EMI shielding

Ventilation fan screens

Handrails and safety guards

Pest control and livestock cages

Process screens and centrifuge screens

Air and water filters

Dewatering, solids/liquid control

Waste treatment

Filters and strainers for air, oil, fuel and hydraulic systems

Fuel cells and mud screens

Separator screens and cathode screens

Catalyst support grids made from bar grating with wire mesh overlay

Qijie's parent company Anping Shenghe Metal Wire Mesh MFG Co., Ltd was set up in 1999. It is located in Anping, which has a reputation of "home of wire mesh" in China. Qijie is particularly established for export by Shenghe. The company implements "one team, two brands" management system and development strategy! We are a leading enterprise in this line with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 30 stainless steel woven mesh machines, 18 welded wire mesh machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines, with annual amount of more than $ 20 million. The main products are stainless steel insect mesh, fence panels, chain link fence, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products. Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
