EN10223-3 Standard 3.2mm Selvedge Wire Hexagonal Gabion for Dam Protection

Hexagonal Gabion Introduction:

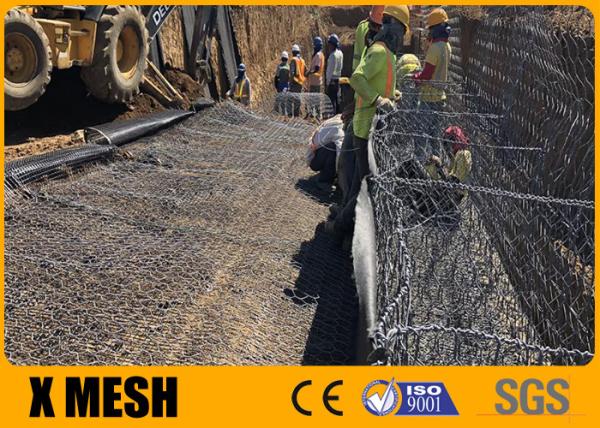

Hexagonal Gabion is a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
Revet mattress, also called , is also a double-twisted wire mesh container with the same weaving method as gabion baskets, only having relatively smaller height and smaller mesh openings than the mesh used for gabions. Revet mattress are generally used for riverbank protection and channel linings.

Hexagonal Gabion Specification:

Hexagonal Gabion Standard:
Heavily zinc-coated steel wire conforming to ASTM A 641, Class 3 coating, soft temper;
Zn-5Al-MM-Coated steel wire conforming to ASTM A 856/856M, Class 3, soft temper;
The same type of metallic-coated steel wire as above, but with an additional PVC coating extruded onto the metallic-coated steel wire;
l Aluminum-coated steel wire conforming to ASTM A 809, soft temper;
The most popular wire diameter for gabion baskets is 2.7mm, 2.2mm for revet mattress.

Weaving:
a nonraveling mesh made by twisting continuous pairs of wires through three one-half turns(commonly called double-twisted) to form hexagonal-shaped openings which are then interconnected to adjacent wires to for hexagonal openings. The most popular mesh opening for gabion baskets is 80x100mm size, 60x80mm for revet mattress. During the process, a terminal wire will be used to edge the wire mesh perpendicular to the double twist by mechanically wrapping the mesh wires around it at least 2.5 times or by inserting it throughout the twists and folding one mesh length. We always use 3.4mm wire for gabion baskets, 2.7mm wire revet mattress.

Hexagonal Gabion Application:

• Control and guide of water or flood

• Flood bank or guiding bank

• Preventing of rock breaking

• Water and soil protection

• Bridge protection

• Strengthening structure of soil

• Protection engineering of seaside area

• stabilization of earth movement and erosion

• canal refurbishment

• landscaping and retaining walls.

Qijie's parent company Anping Shenghe Metal Wire Mesh MFG Co., Ltd was set up in 1999. It is located in Anping, which has a reputation of "home of wire mesh" in China. Qijie is particularly established for export by Shenghe. The company implements "one team, two brands" management system and development strategy! We are a leading enterprise in this line with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 30 stainless steel woven mesh machines, 18 welded wire mesh machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines, with annual amount of more than $ 20 million. The main products are stainless steel insect mesh, fence panels, chain link fence, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products. Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
