    4 Folds Welded Galvanised Security Fencing ODM Zinc Alloy Coated

    Ask Lasest Price
    Brand Name : X MESH
    Model Number : X MESH-053
    Certification : ISO9001:2015
    Price : USD25.00-58.35/Set
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 5000sets/week
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

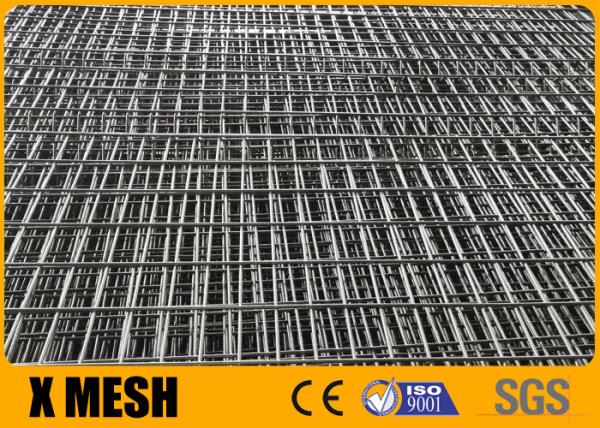

    4 Folds Welded Galvanised Security Fencing ODM Zinc Alloy Coated

    Galfan zinc alloy coated 4 folds 3.0m High Commercial Metal Mesh Fencing

    Metal Mesh Fencing Description:


    Metal Mesh Fencing: High quality 3d curve welded wire mesh garden fence panel is one of the most important

    ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. It is

    very affordable and inexpensive that is why we see most homes using wire fencing for their walls and

    also very durable and easy to make and fix on fences.

    Metal Mesh Fencing Feature:

    1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
    2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
    3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
    4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated

    Metal Mesh Fencing Specification:

    Mesh Panel

    Wire Thickness

    Panel Width

    Number of Folds

    Height

    Spacing between horizontal wire: 100mm, 150mm, 200mm

    3.0mm
    or
    3.5mm
    or
    4.0mm
    or
    4.50mm
    or
    5.00mm

    2.0m or 2.50m
    or 2.9m

    2

    830mm

    2

    1030mm

    2

    1230mm

    The spacing between vertical wire:
    50mm, 55mm

    2

    1430mm

    3

    1630mm

    3

    1830mm

    Reforced folds: 100mm, 200mm

    4

    2030mm

    4

    2230mm

    4

    2430mm

    Fence panel

    Material

    Low carbon steel wire

    Wire diameter

    3.0mm-6.0mm

    Opening(mm)

    50x100, 50x150,50x200,75x150,75x200

    Height

    0.8-3M

    Width

    2-3M

    Panel type

    with or without curves are both available

    Fence post

    Square post

    40x40mm,50x50mm,60x60mm,40x60mm

    Round post

    40-60mm

    Peach post

    50x70mm, 70x100mm

    Post thickness

    1.2-2.5mm

    Post height

    0.8-3.5M

    Post base

    with or without the base flangle are both available

    Post fittings

    post clips with bolts and nuts ,post rain post

    Fence finishing

    Hot -dipped galvanized

    PVC powder spraying coated or PVC powder dipped coated

    Galvanized +PVC powder spraying/ dipped coated

    Packing

    1. with pallet; 2. bulk in container

    The customization is also available

    Specification of Square post

    Size

    40* 50mm.40*40mm, 50* 50mm,60*60mm,80*80mm

    Thickness

    1.2mm, 1. 5mm, 2.0mm.

    Height

    1800mm,2100mm,2300mm,2500mm or as your request

    Surface Treatmenq

    Hot -dipped galvanized, PVC, hot galva nized+PVC

    clips

    Plastic clip, metal clip

    Metal Mesh Fencing Advantage:

    1.The fence has comparatively high overall strength and very apparent decorative effect;

    2.High grade plastic dipping with 20 yearsguarantee rust resistance;

    3.To install and disassemble easily.Can be reused. Can be adjusted according to the fencing needs;

    4.Environmentally friendly products. Can be ultimately recyclable.

    --Triangle Fence Post Specifications

    Metal Mesh Fencing Application:


    Metal Mesh Fencing is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
    Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.
