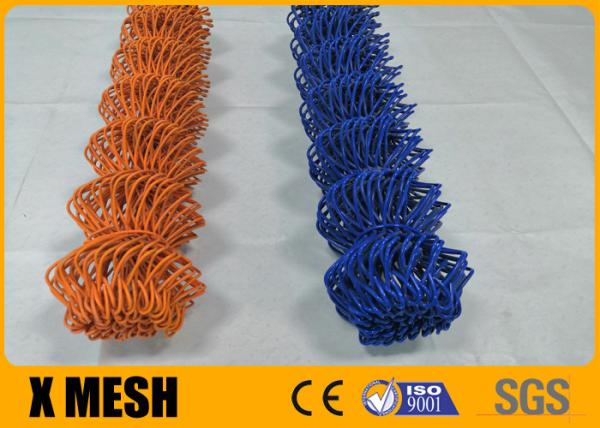

    Orange Economical 12 Gauge Chain Link Mesh Fencing PVC Coated

    Ask Lasest Price
    Brand Name : X MESH
    Model Number : X MESH-019
    Certification : ISO9001:2015
    Price : USD1.25-5.85/m2
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000m2/week
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    Orange Economical 12 Gauge Chain Link Mesh Fencing PVC Coated

    12 Gauge Residential ASTM F668 Standard chain link mesh fencing

    chain link mesh fencing Introduction:

    Chain link fence ( Galvanized & PVC coated )

    Properties – PVC Coated

    Property

    Description

    Material

    Steel wire is hot dip galvanised, then immersed in primer before plastic coating is applied.

    Wire Construction

    Twisted together in a single wind for superior flexibility & adaptability during installation

    Zinc Purity

    99.9%

    Appearance

    Diamond shape mesh, with alpine green plastic coating

    Hole Size

    50mm x 50mm

    Diameter

    Standard: 1.7mm / 2.5mm & Heavier: 2.1mm / 3.1mm

    Handling

    Delivered as a roll, easy to cut to size

    Biodegradable

    No

    Corrosion Resistance

    10 years (in low risk environments)

    chain link mesh fencing Description:


    Chain Link Fencing is widely recognised as the most credible boundary fencing. It is used globally for a multitude of security applications. Offering a choice of different wire gauges, Chain Link fences can be used as a simple demarcation fence. However it is often also used as a sports fence or as a security fence. You will often see chain fencing in use at sports centres, airports, events and schools. It is seen as the perfect tennis court fence as spectators can see through whilst also being protected.

    What is chain link fencing?

    Charles Barnard originally developed Chain link fencing in the 1840's. He came up with the idea in Norwich based on the original cloth weaving machines. Today, it has become one of the most cost effective and popular fencing solutions ever produced. The open weave does not obscure sunlight from either side of the fence and it has a relatively low cost to manufacture. Considering cost as well as effectiveness, the fact is that chain fences provide strong security.

    Design

    The design of Chain Link fences provides clear visibility. This makes it suitable for safe areas of play and to deter any would-be intruders. Chain Link Fencing is available in a choice of sizes with heights ranging from 900mm high up to 3.6m high and with additional features can achieve heights in excess of 3.6m. Steelway are suppliers of chain link fencing and can provide fences in varying heights and diameters depending on the application.

    Galvanized wire is recommended with chain link fencing for rust prevention and increased longevity. This is the process of combining steel with molten zinc. Chain link fences can be supplied in either a galvanized finish or galvanised and PVC coated in either Green or Black.

    If you would liked more information on chain link fencing costs please get in touch today where we can discuss prices with you based on your specifications.

    chain link mesh fencing Specification:

    PVC Coated Chain Link Fence - 9 Gauge

    PVC Coated
    9 gauge

    *Colors depicted not exact

    Size
    (Mesh x Gauge x Height)

    Ends

    Weight
    Per 50'

    2 x 9 x 36

    KxK

    53 lbs

    2 x 9 x 42

    KxK

    63 lbs

    2 x 9 x 48

    KxK

    70 lbs

    2 x 9 x 60

    KxK

    88 lbs

    2 x 9 x 72

    KxB

    105 lbs

    2 x 9 x 84

    KxB

    123 lbs

    2 x 9 x 96

    KxB

    140 lbs

    2 x 9 x 120

    KxB

    173 lbs

    2 x 9 x 144

    KxB

    208 lbs

    1-3/4 x 9 x 120

    KxB

    198 lbs

    1-3/4 x 9 x 144

    KxB

    238 lbs

    1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;

    2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm).

    • chain link mesh fencing Specified For:

    Industrial / Commercial

    • Prisons

    • High Security Applications

    • Highways & Bridges

    • State & Federal Agencies

    • Severe Marine Installations

    Commercial / Recreational

    • Hospitals

    • Airports

    • Tennis Courts

    • Golf Courses

    • Athletic Fields

    Secure-Guard® Fabric:

    • Bridges

    • Military Facilities

    • Prisons

    • Pedestrian Overpasses

    • Highway Dividers
