Brown Vinyl - coated ASTM F668 Standard highway hurricane fence
hurricane fence Introduction:
hurricane fence edge Styles :
1) Knuckle-Knukle:The wire is knuckled at both ends and abbreviated as(KK)
2) Knuckle-Barbed:The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)
3) Barbed-Barbed:The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)
hurricane fence ( Galvanized & PVC coated )
hurricane fence, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications.
hurricane fence Description:
-
PVC poating hurricane fence ( vinyl coating )
There are two types of vinyl coating (PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option. Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm)
hurricane fence Specification:
Extruded and adhered
zinc coating core wire size | PVC coated finished
wire size | PVC coated wire
available variance | Core wire zinc,
coating weight
min. | PVC coating
thickness | Breaking strength
minimum | Tensile strength,
min |
ga. | inch | mm | ga | inch | mm | oz/ft2 | g/m2 | inch | mm | lbf | N | ksi | Mpa |
9 | 0.148 | 3.76 | 6 | +/- 0.005 | +/-0.13 | 0.30 | 92 | 0.015 to
0.025 | 0.38 to
0.64 | 1,290 | 5,740 | 75 | 515 |
11 | 0.120 | 3.05 | 8 | +/- 0.005 | +/-0.13 | 0.30 | 92 | 850 | 3,780 | 75 | 515 |
14 | 0.080 | 2.03 | 11 | +/- 0.005 | +/-0.13 | 0.25 | 76 | 380 | 1,690 | 75 | 515 |
Fused and bonded
zinc coating core wire size | pvc coated finished
wire size | PVC coated wire
available variance | Core wire zinc,
coating weight
min. | PVC coating
thickness | Breaking strength
minimum | Tensile strength,
min |
ga | inch | mm | ga | inch | mm | oz/ft2 | g/m2 | inch | mm | lbf | N | ksi | Mpa |
6 | 0.192 | 4.88 | 5 | +/- 0.005 | +/-0.13 | 0.40 | 122 | 0.006 to
0.010 | 0.15 to
0.25 | 2,170 | 9,650 | 75 | 515 |
9 | 0.148 | 3.76 | 8 | +/- 0.005 | +/-0.13 | 0.30 | 92 | 1290 | 5,740 | 75 | 515 |
10 | 0.135 | 3.43 | 9 | +/- 0.005 | +/-0.13 | 0.25 | 92 | 1290 | 5,740 | 90 | 620 |
11 | 0.120 | 3.05 | 10 | +/- 0.005 | +/-0.13 | 0.30 | 92 | 850 | 3,780 | 75 | 515 |
12 | 0.105 | 2.67 | 11 | +/- 0.004 | +/-0.10 | 0.30 | 76 | 650 | 2,890 | 75 | 515 |
14 | 0.080 | 2.03 | 13 | +/- 0.004 | +/-0.10 | 0.25 | 76 | 380 | 1,690 | 75 | 515 |
A typical specification list for 9 gauge hurricane fence
PVC Coated Chain Link Fence - 9 Gauge |
PVC Coated
9 gauge
*Colors depicted not exact
| Size
(Mesh x Gauge x Height) | Ends | Weight
Per 50' |
2 x 9 x 36 | KxK | 53 lbs |
2 x 9 x 42 | KxK | 63 lbs |
2 x 9 x 48 | KxK | 70 lbs |
2 x 9 x 60 | KxK | 88 lbs |
2 x 9 x 72 | KxB | 105 lbs |
2 x 9 x 84 | KxB | 123 lbs |
2 x 9 x 96 | KxB | 140 lbs |
2 x 9 x 120 | KxB | 173 lbs |
2 x 9 x 144 | KxB | 208 lbs |
1-3/4 x 9 x 120 | KxB | 198 lbs |
1-3/4 x 9 x 144 | KxB | 238 lbs |
1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;
2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm).
hurricane fence Application:
Tennis courts
Gardens
Play areas
School boundaries
Parks
Ministry of Defence

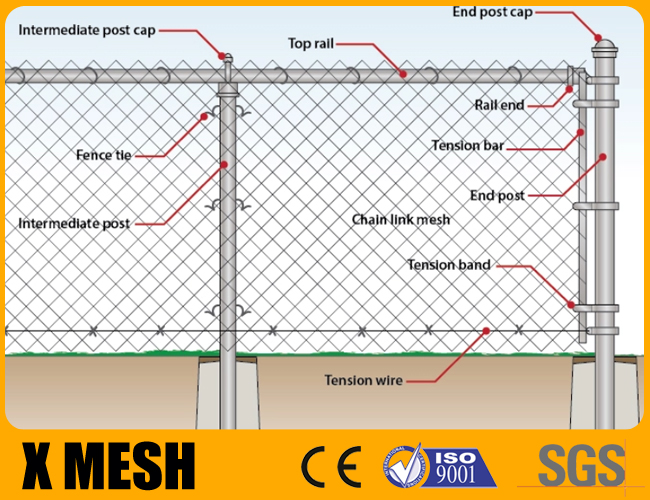

Suitable posts and gates
Angle Iron (AI)
Rectangular Hollow Section (RHS)
Circular Hollow Section (CHS)
Single leaf gates
Double leaf gates
Sliding gates
Versatile
Cost effective
East to install
Blends into it’s surroundings
Various heights and gauges available from stock
Galvanised, Green & Black in stock
