AS2423-2002 Standard Airport 8ga wire 2400mm width Black 358 Mesh Fence

358 Mesh Fence Description:

Anti-Climb Welded Wire Fence

The WireWorks Anti-Climb fence is a unique perimeter security product that maintains a guarded display of visual screening balancing the need to delay and deter an attack. The distinguishing feature of WireWorks Anti-Climb is the anti-scale and anti-cut welded wire mesh. This makes it very difficult to get a foothold on this fence, and the cutting implements required to sever its welded heavy steel wire cannot fit into the minimal spaces of the mesh.

New and Improved Design!

These improvements provide a better product and cost savings to you while expanding your market opportunities! WireWorks Anti-Climb is now available in a 10 foot height with 8 gauge wire mesh and can be made in a groundable configuration - a requirement needed for substation enclosures. Installation times are also up to 40% faster compared to the previous configuration. Now only 1 fastener is needed for rail to mesh and mesh to I-beam connections, and the revised mesh panels eliminate "stack-up" in min-max post spacing!

358 Mesh Fence Introduction:

• Wire: 4 mm steel wire.

• Wire surface finish: galfan coating after welded, and then PVC powder coating (Min. 120 micron), or PVC powder painting.

• PVC coated color: black, dark green, brown, yellow, desert sand, bronze or other colors request.

• Mesh opening pattern: 70 mm × 8 mm, welded well at each intersection.

• Mesh sheet width: 2515 mm.

• Anti-climb mesh fencing panels and posts.

• Fence security toppings: Flat razor wire coils with barbed wire, concertina barbed wire, security fence spikes, or shark tooth spikes (coating according to the anti-climb fence panels).

  • Shark tooth spikes: width 35 mm, long teeth up to 58 mm.

  • Security anti-climb fence spikes:

    • Plate thickness: 2.0 mm

    • Base width: 65 mm.

    • Spike length: 35 mm short spikes, 70 mm long spikes.

    • Spikes pitch: 70 mm.

  • Razor wire

    • Style: flat razor wire or concertina razor wires.

    • Barb length: short barb or long barb.

    • Material: galvanised steel, stainless steel (for extremely corrosive environments).

    • Wire: high tensile 25 mm, aluminum/zinc wire, breaking load 7700 N.

    • Coil Diameter: 600 mm, 750 mm.

    • Number of loops: 55.

    • Extent length: 7.5 m.

  • Barbed wire

    • Galvanized and PVC coated barbed wire with 2 strands and 4 points.

    • Gauge of strand and barb wire: 11 gauge.

    • Barbs spacing: 3 inch.

358 Mesh Fence Specification:

358 Mesh Fence process:

1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated

358 Mesh Fence Packaging:

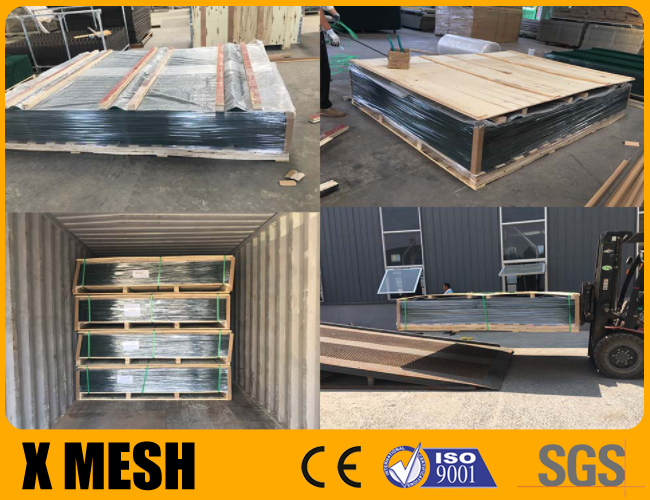

358 mesh fence panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.

358 Mesh Fence Application:

• Army Camp

• Gated Security

• Prison

• Industrial Factory

• Play Ground

• Stadium

• Housing Estate

• Detention Centre

• Carpark

• Public Hall

• Train Station

• Harbour

• Walkway

• Highway

• Sport Centre

• Airport

• School

• Lrt Station

• Dam Boundary

• Reserved Forest​​

​
