Green hole size 3inch by 0.5inch 3000mm high AS/NZS 4534-2006 358 Anti Climb Fence

358 Anti Climb Fence Description:

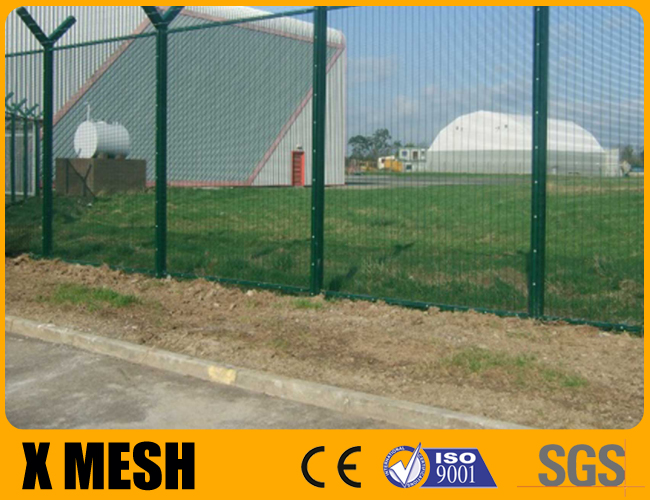

ANTI CLIMB FENCE is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. It has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Hence, it prevents anyone from climbing over the fence to reach the protected area.

ANTI CLIMB FENCE is also known as ANTI CUT FENCE. The fence is designed to make it very difficult to cut through the panel with simple hand tools. With wire thickness of 4mm and spacing of 75mm x 12.5mm, intruders can never cut off the fence.

With excellent see through visibility makes ANTI CLIMB FENCE ideal to use in areas where CCTV is in operation. It is also very suitable to use on commercial, residential, governmental and industrial properties where you can enjoy both the ultimate security without compromising the visibility of customers and others.

The high quality galvanising coating gives ANTI CLIMB FENCE users a worry free mind. This is because unlike many other mild steel fences, ANTI CLIMB FENCE is hot dipped galvanised and does not get rusted easily in a short period of time. As a result, low maintenance or maintenance free for a very long period gives the user a calm mind.

358 Anti Climb Fence Introduction:

• Wire: 4 mm steel wire.

• Wire surface finish: galfan coating after welded, and then PVC powder coating (Min. 120 micron), or PVC powder painting.

• PVC coated color: black, dark green, brown, yellow, desert sand, bronze or other colors request.

• Mesh opening pattern: 70 mm × 8 mm, welded well at each intersection.

• Mesh sheet width: 2515 mm.

• Anti-climb mesh fencing panels and posts.

• Fence security toppings: Flat razor wire coils with barbed wire, concertina barbed wire, security fence spikes, or shark tooth spikes (coating according to the anti-climb fence panels).

  • Shark tooth spikes: width 35 mm, long teeth up to 58 mm.

  • Security anti-climb fence spikes:

    • Plate thickness: 2.0 mm

    • Base width: 65 mm.

    • Spike length: 35 mm short spikes, 70 mm long spikes.

    • Spikes pitch: 70 mm.

  • Razor wire

    • Style: flat razor wire or concertina razor wires.

    • Barb length: short barb or long barb.

    • Material: galvanised steel, stainless steel (for extremely corrosive environments).

    • Wire: high tensile 25 mm, aluminum/zinc wire, breaking load 7700 N.

    • Coil Diameter: 600 mm, 750 mm.

    • Number of loops: 55.

    • Extent length: 7.5 m.

  • Barbed wire

    • Galvanized and PVC coated barbed wire with 2 strands and 4 points.

    • Gauge of strand and barb wire: 11 gauge.

    • Barbs spacing: 3 inch.

358 Anti Climb Fence Specification:

358 Anti Climb Fence process:

1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated

358 Anti Climb Fence Packaging:

358 mesh fence panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.

358 Anti Climb Fence Application:

• Army Camp

• Gated Security

• Prison

• Industrial Factory

• Play Ground

• Stadium

• Housing Estate

• Detention Centre

• Carpark

• Public Hall

• Train Station

• Harbour

• Walkway

• Highway

• Sport Centre

• Airport

• School

• Lrt Station

• Dam Boundary

• Reserved Forest​​

​
