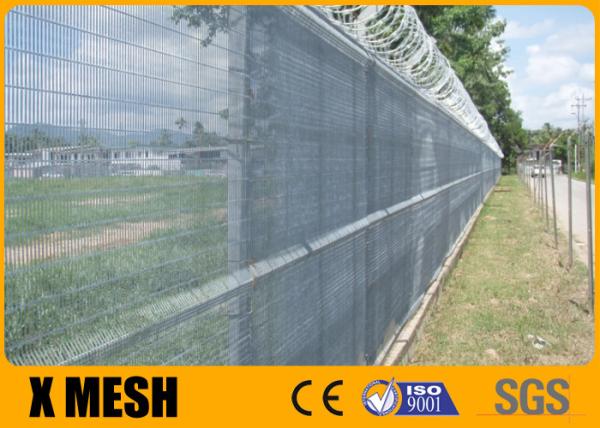

Hot Galvanized Wire Black Powder Coated 3300mm high Prison Anti Climb Mesh Fence

Anti Climb Mesh Fence Description:

358 Welded Anti Climbing Fence – Prison Mesh Fencing

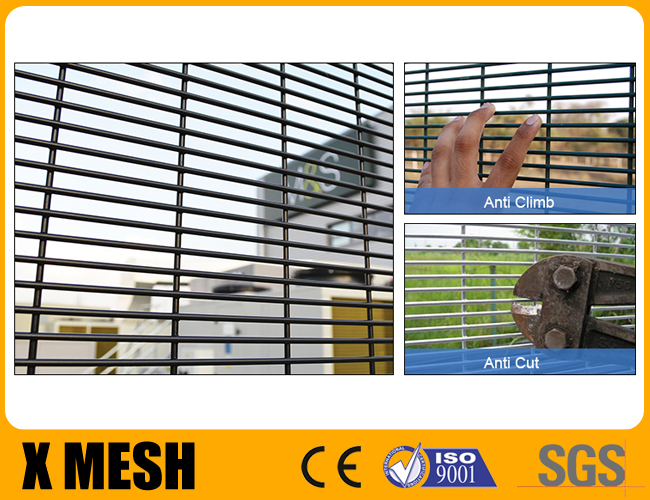

358 anti climb fence, known as "prison mesh", is a high security anti-climbing and anti-cutting welded wire fence. Galvanized wire, commonly, is welded into fencing panels with extremely fine opening holes, which cannot be penetrated by hand fingers or cut by bolt cutters. Therefore it is highly recommended for high security needed area and private living field.

The name—358 high security fence comes from the size of panel mesh opening and wire diameter: 3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability.

Anti-Climb Welded Wire Fence

The WireWorks Anti-Climb fence is a unique perimeter security product that maintains a guarded display of visual screening balancing the need to delay and deter an attack. The distinguishing feature of WireWorks Anti-Climb is the anti-scale and anti-cut welded wire mesh. This makes it very difficult to get a foothold on this fence, and the cutting implements required to sever its welded heavy steel wire cannot fit into the minimal spaces of the mesh.

New and Improved Design!

These improvements provide a better product and cost savings to you while expanding your market opportunities! WireWorks Anti-Climb is now available in a 10 foot height with 8 gauge wire mesh and can be made in a groundable configuration - a requirement needed for substation enclosures. Installation times are also up to 40% faster compared to the previous configuration. Now only 1 fastener is needed for rail to mesh and mesh to I-beam connections, and the revised mesh panels eliminate "stack-up" in min-max post spacing!

Anti Climb Mesh Fence Introduction:

• Wire: 4 mm steel wire.

• Wire surface finish: galfan coating after welded, and then PVC powder coating (Min. 120 micron), or PVC powder painting.

• PVC coated color: black, dark green, brown, yellow, desert sand, bronze or other colors request.

• Mesh opening pattern: 70 mm × 8 mm, welded well at each intersection.

• Mesh sheet width: 2515 mm.

• Anti-climb mesh fencing panels and posts.

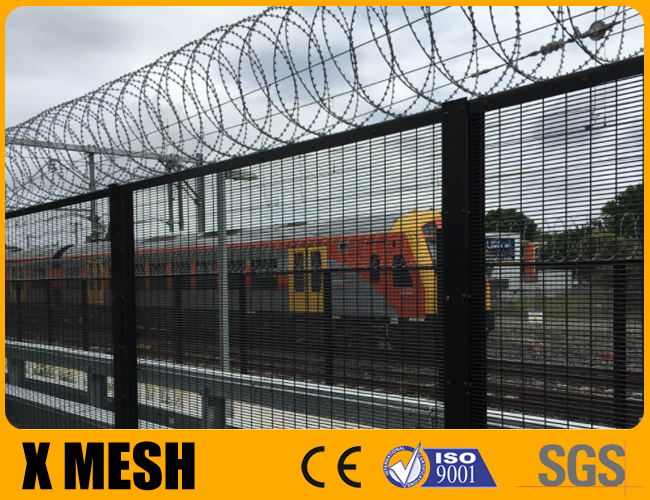

• Fence security toppings: Flat razor wire coils with barbed wire, concertina barbed wire, security fence spikes, or shark tooth spikes (coating according to the anti-climb fence panels).

  • Shark tooth spikes: width 35 mm, long teeth up to 58 mm.

  • Security anti-climb fence spikes:

    • Plate thickness: 2.0 mm

    • Base width: 65 mm.

    • Spike length: 35 mm short spikes, 70 mm long spikes.

    • Spikes pitch: 70 mm.

  • Razor wire

    • Style: flat razor wire or concertina razor wires.

    • Barb length: short barb or long barb.

    • Material: galvanised steel, stainless steel (for extremely corrosive environments).

    • Wire: high tensile 25 mm, aluminum/zinc wire, breaking load 7700 N.

    • Coil Diameter: 600 mm, 750 mm.

    • Number of loops: 55.

    • Extent length: 7.5 m.

  • Barbed wire

    • Galvanized and PVC coated barbed wire with 2 strands and 4 points.

    • Gauge of strand and barb wire: 11 gauge.

    • Barbs spacing: 3 inch.

Anti Climb Mesh Fence Specification:

Wire Panels: 3" x 0.5" x 10.5ga (8' ht.) / 8ga (10' ht.) anti-climb mesh

Impasse II Rails: 2"sq x 11ga

I-Beam Posts: 3" x 2.75" x 12ga / 4" x 2.75" x 12ga

Heights: 8' & 10'

Anti Climb Mesh Fence Feature:

• Anti-Cut and Anti-Climb Security

• Single Sided Installation

• Groundable Fence Solution Meeting IEEE Standards

• Integrated Design

• IBC Compliant Options Available

• PermaCoat Maintenance Free Finish

• Meets Buy American Act

• 10 Year Limited Warranty

Anti Climb Mesh Fence Packaging:

358 mesh fence panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.

Anti Climb Mesh Fence Application:

As the leading outdoor perimeter fencing expert in China, ANTI CLIMB FENCE is widely used by reputable Real Estate Developers, Industrial Factories, Engineering Firms, Farms owners, Government Sectors :JKR, DBKL,TNB, MBSA, MBPJ, KNM, TM, SYABAS,IWK etc.

• Prison perimeter areas.

• Military sites and government facilities.

• Electricity distribution sites.

• Airports, railways, roadways.

• Seaports.

• Fencing & intrusion detection projects.

• Hydel power project.

• Petroleum and chemical facilities.

• Wildlife sanctuaries.

• Warehousing facilities,

• School.

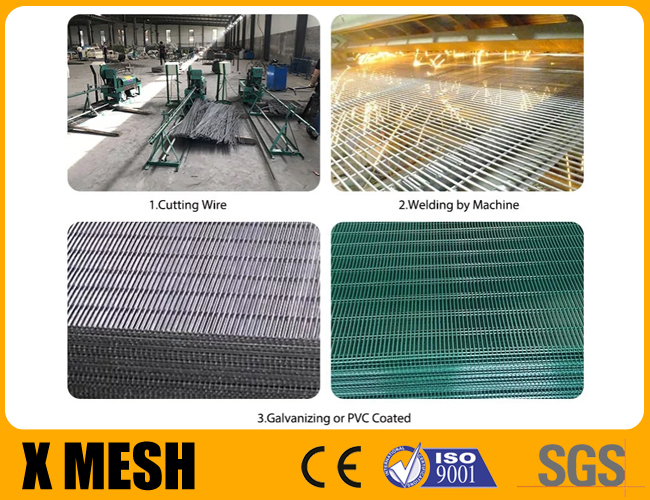

Qijie's parent company Anping Shenghe Metal Wire Mesh MFG Co., Ltd was set up in 1999. It is located in Anping, which has a reputation of "home of wire mesh" in China. Qijie is particularly established for export by Shenghe. The company implements "one team, two brands" management system and development strategy! We are a leading enterprise in this line with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 30 stainless steel woven mesh machines, 18 welded wire mesh machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines, with annual amount of more than $ 20 million. The main products are stainless steel insect mesh, fence panels, chain link fence, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products. Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
