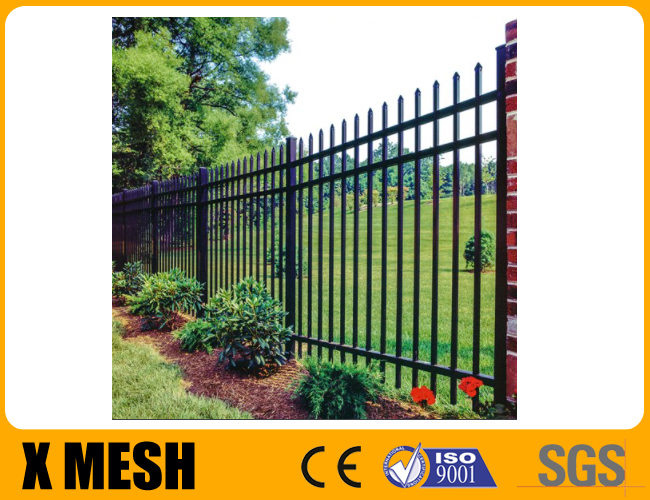

ASTM F2408 Standard Galvanized Coated 96 inches Width Wrought Iron Steel Fence

Wrought Iron Steel Fence Description:

Heavy Industrial Grade Aluminum Fence

Our Qijie heavy industrial grade aluminum fencing is constructed of 1-5/8"x 1-5/8" rails with an enclosed bottom and has no exposed screws, 1"x 1" pickets, and uses 3"x 3" or 4"x 4" post.

The heavy industrial grade aluminum fences are available in six standard styles. Elite heavy industrial grade fencing is available in either Black or Quaker Bronze. The heavy industrial grade fences are available in heights of 4’, 5’, 6’, 7’, 8’, and 10’.

Wrought Iron Steel Fence Specification:

• Pickets: .75"sq x 18ga

  Rails: 1.4375" x 1.5" x 14ga

  Posts: 2.5"sq x 16ga

  Heights: 3', 3 1/2', 4', 5' or 6'

Screws: 410 Stainless Steel corrosion resistant. The heads are coated with zinc and yellow chromate, then painted to match the color of the fence.
Panels: Fully assembled 6 feet in length plus or minus one inch.

Wrought Iron Steel Fence Details:

Pickets: Residential 5/8'' square x .050 wall; Commercial 3/4" square x .055 wall

Spacing between Pickets: Residential standard 3-13/16'' and optional 1-5/8”; Commercial standard 3-5/8” and optional 1-1/2”

Fasteners: Stainless steel

Horizontal Rails: Residential 1-1/8'' x 1'' with .080 side walls and .062 top walls; Commercial 1-1/4” x 1-3/8” with .088'' side walls and .065'' top walls

Posts: Residential 2'' square x .060, .080, or .125 wall; 2-1/2” square x .100 wall; Commercial 2'' square x .080 or .125 wall; 2-1/2” square x .100 wall ; and 3” square x .125 wall. All posts include standard caps.

Alloy: High-strength Ultrum™ 6005-T5 alloy, min. strength 35,000 PSI

Finish: Powercoat™. When applied, Powercoat™ finish is twice the thickness and hardness of a typical acrylic, baked enamel or “wet paint” finish, making it more durable, fade-resistant and scratch-resistant than other coatings.

Wrought Iron Steel Fence Features:

• Fully Welded Panel w/ Profusion Technology

• E-Coat Surface Protection

• GSA Schedule

• Easy Installation

• Fully rakeable panels

• IBC Compliant Options Available

• Meets Buy American Act

• Sustainable Materials

• 20 Year Limited Warranty

Wrought Iron Steel Fence COLORS:

Black, Satin Black, Bronze, Satin Bronze, Beige, Satin Khaki, White, Satin White, Forest Green

Wrought Iron Steel Fence Application:

We supply residential, commercial and municipal galvanized steel fence as well as steel security gates for state and federal projects such as: highway, public parks, schools, universities, transit, government buildings, airports, parking lots and high security facilities. Our galvanized prefabricated ornamental steel fence and railing panels are prefinished with superior powder coated finishes made to stand the test of time.

Qijie's parent company Anping Shenghe Metal Wire Mesh MFG Co., Ltd was set up in 1999. It is located in Anping, which has a reputation of "home of wire mesh" in China. Qijie is particularly established for export by Shenghe. The company implements "one team, two brands" management system and development strategy! We are a leading enterprise in this line with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 30 stainless steel woven mesh machines, 18 welded wire mesh machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines, with annual amount of more than $ 20 million. The main products are stainless steel insect mesh, fence panels, chain link fence, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products. Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
