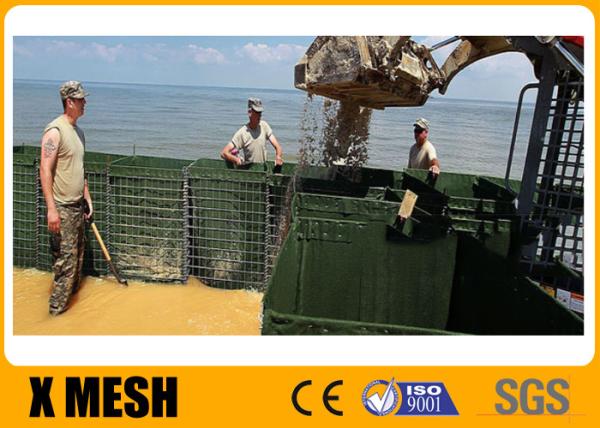

4.0 / 5.0 MM Hesco Flood Barriers Use For River And Sea Bank with
green textiles
Hesco Barrier Introduction:
Defensive barrier is also named sand cage, sand bag, welded gabion
box, bastion barrier, etc. It is a prefabricated,
multi-cellularsystem, made of zinc coated steel welded mesh and
lined with non-woven geotextile. Units can be extended and joined
using the provided joining pins. It is easily installed using
minimal manpower and commonly available equipment. After extended,
it is filled into sand, stone, then hesco barrier like a defence
barrier wall or bunker, it is widely used for fortification and
flood control.
Product name | Hesco Barrier |
Series | 95% Zinc + 5% Aluminium(275g/m2) |
Wire Diameter | 5.0mm |
Mesh Opening | 75mm x 75mm |
Height | 610mm |
Geotextile | 300g/m2 |
Color | Green |
Characteristic | Firm & Stable |
Application | For Sea Bank |
Packing | Plastic film & Pallet |
Hesco Barrier Standard Specification:
Mesh Part | Geotextile Part |
Height | Width | Length | Wire Thickness | Mesh Opening | Wire Tensile | Wire Type | Weight | Color |
1370 | 1060 | 10000 | 3.0 3.5 4.0 | 76.2*76.2 75*75 | 540-770Mpa | Zinc Coated WireZinc/Aluminium Coated Wire | 200G/M2 300G/M2 | Beige Ral-1001 Green Ral-6005 |
610 | 610 | 1210 |
1000 | 1000 | 10000 |
1000 | 1500 | 10000 |
610 | 610 | 3050 |
2210 | 2130 | 27740 |
1370 | 1060 | 10000 |
1370 | 1220 | 10000 |
1000 | 760 | 9140 |
2120 | 1520 | 30500 |
Unit Type | Height | Width | Length | Internal Cells |
MIL 1 | 1.37m/4'6" | 1.06m/3'6" | 10m/32' | 9cells(4+5) |
MIL 2 | 0.61m/2' | 0.61m/2' | 1.22m/4' | 2cells |
MIL 3 | 1.0m/3'3" | 1.0m/3'3" | 10m/32' | 10cells(5x2) |
MIL 4 | 1.0m/3'3" | 1.5m/5' | 10m/32' | 10cells(5x2) |
MIL 5 | 0.61m/2' | 0.61m/2' | 3.05m/10' | 5cells(5x1) |
MIL 6 | 1.68m/5'6" | 0.61m/2' | 3.05m/10' | 5cells(5x1) |
MIL 7 | 2.21m/7'3" | 2.13m/7' | 27.74m/90' | 13cells(4+4+5) |
MIL 8 | 1.37m/4'6" | 1.22m/4' | 10m/32' | 9cells(4+5) |
MIL 9 | 1.0m/3'3" | 0.76m/2'6" | 9.14m/30' | 12cells(6x2) |
MIL 10 | 2.12m/7' | 1.52m/5' | 30.5m/95' | 20cells(5x4) |
MIL1.9 | 2.74m/9' | 1.06m/3'6" | 3.3m/11'3" | 3cells(3x1) |
EPW 1 | 2.1m/7' | 1.06m/3'6" | 33m/108' | 30cells(5x6) |
Hesco Barrier Feature:
Our defensive barrier comes as a flat-packed unit and can be
assembled faster with minimal manpower, handling equipment, and
fill material. That can largely save you time and manpower compared
with the previous sandbag barrier.
Hesco Barrier Application:
Perimeter security and defensing walls, Equipment revetments,
explosive and contraband search areas, Ammunition compounds,
Personnel and material bunkers, Observation points, Defensive
firing positions, Highway checkpoints, Border crossing checkpoints,
Protection existing structures, High way traffic management, Flood
control, Water courses, Emergency flood deployment & Erosion
control.
