    5ft Width 4.83mm Wire Galvanised Welded Mesh Panels For Surface Support

    Ask Lasest Price
    Brand Name : X MESH
    Model Number : X MESH-Mine Mesh-004
    Certification : ISO9001:2015
    Price : USD14.50-58.50/PC
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 58000PCS/WEEK
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    5ft Width 4.83mm Wire Galvanised Welded Mesh Panels For Surface Support

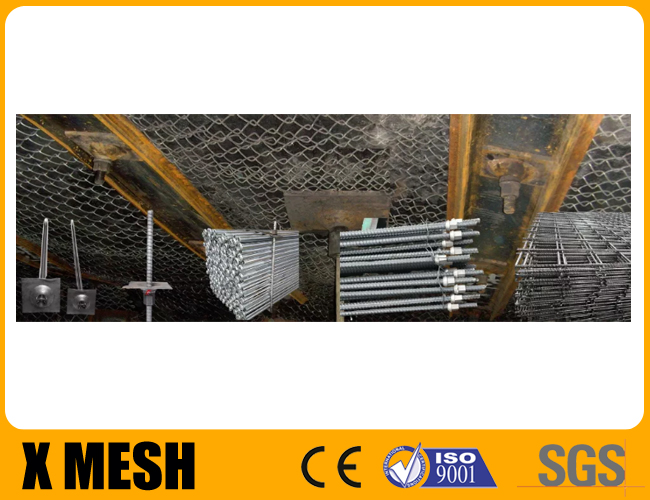

    5ft Width Welded Mining Mesh for surface support on the mine roof and rib

    Welded Mining Mesh Introduction:

    Mine Welded Wire Mesh support is a kind of support method in deep foundation pit support project. It is the shortened form for joint support of shotcrete, bolt and steel mesh, as an advanced support and reinforcement technology, in rock soil high slope and large span underground works, especially under adverse geological conditions, extensive and successful applicated at home and abroad.

    Product Name

    Welded Mining Mesh

    Material

    Galvanized Steel Wire

    Wire Diameter

    4.83mm

    Mesh Opening

    4 x 4 inch

    Width

    5 ft

    Length

    11 ft

    Feature

    Firm & Stable

    Application

    for surface support on the mine roof and rib

    Packing

    Plastic film & Pallet Packing

    Standard

    ASTM A1064 Standsard

    Welded Mining Mesh Specification:

    Product

    Mine mesh

    Wire diameter

    # 6 (0.148 inch or 4.83 mm)

    Hole size

    4 x 4 inch or 100 x 100 mm

    Mesh size

    4 ft. x 10 ft, 5 ft. x 11 ft

    Standard

    ASTM A1064

    Mechanical Properties

    Component

    Strength


    Standard

    Wire

    Tensile 500-750MPa

    AS/NZS4671:2001

    Weld Shear Strength

    ISO15630-2

    Galvanising

    AS/NZS4534-2006

    Welded Mining Mesh Feature:

    The DSI welded wire mesh sheet has been designed to provide a safe working environment by providing surface support on the mine roof and rib. The welded wire mesh sheet is manufactured from individual wire strands electrically resistant welded together to form a mesh sheet. The welded wire mesh can be supplied in a variety of configurations using different wire gauges and wire spacing. The objectives of the welded wire mesh sheet have been incorporated into the design by a number of features:

    • Designed to suit customers specific mine drive dimensions and ground conditions.

    • Suitable for shotcrete applications.

    • Provides consistency of rock bolt patterns.

    • Flush all round.

    • Easy to handle.

    Welded Mining Mesh Application:

    Slab on Grade reinforcement

    Floor and Walls Systems

    Topping Slabs

    ArchiteFloor and Walls Systemsctural precast wall panels

    Tilt-up construction wall systems

    Shear walls

    Retaining walls

    Mechanically Stabilized Earth (M.S.E.) reinforcement
