Rust Resistance Woven Wire Mesh Netting X Tend Mesh For Safety Net 2.0m Width

Ask Lasest Price
Brand Name :	X MESH
Model Number :	X MESH-Cable Webnet-008
Certification :	ISO9001:2015
Price :	USD3.5-5.85/m2
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	5000m2/week
Delivery Time :	5-7days

Add to Cart

Product Details
Company Profile

Rust Resistance Woven Wire Mesh Netting X Tend Mesh For Safety Net 2.0m Width

Silver Color Woven Wire Mesh Netting X Tend Cable Webnet for Safety Net

Woven Wire Mesh Introduction:

The stainless steel ferrule rope mesh is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with stainless steel, copper or aluminium clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. The stainless steel net is suited for interior and exterior applications.Installed on railings or in stairways, it provides stability and clear guidance. On façades, it can serve as a climbing support for plants or it can set delicate accents as a dividing element in large spaces.

Product Name	Woven Wire Mesh
Material	Stainless Steel 316L
Wire Rope	2mm
Rope Constructions	7 X 7
Mesh Shape	Diamond
Application	for Safety Net
Panel Size	1.0m(H) x 2.0m(W)
Color	Light Silver
Feature	Rust Resistance, Firm & Stable
Packing	Carton or Wooden Case Packing

Woven Wire Mesh Standard Specification:

1.0mm Rope Mesh
Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2
CD1020	0.69	1	20	35	72	1
CD1025	0.69	1	25	45	78	0.74
CD1030	0.69	1	30	52	80	0.58
CD1035	0.69	1	35	61	85	0.64
CD1040	0.69	1	40	70	86	0.41
CD1050	0.69	1	50	90	88	0.3
CD1060	0.69	1	60	105	89	0.24
CD1070	0.69	1	70	120	92	0.19
CD1080	0.69	1	80	140	93	0.16

1.5 mm Rope Mesh
Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2)
CD1525	1.6	1.5	25	45	72	1.59
CD1530	1.6	1.5	30	52	76	1.25
CD1535	1.6	1.5	35	61	81	0.99
CD1540	1.6	1.5	40	70	83	1.22
CD1550	1.6	1.5	50	90	87	0.87
CD1560	1.6	1.5	60	105	89	0.68
CD1570	1.6	1.5	70	120	91	0.54
CD1580	1.6	1.5	80	140	92	0.34
CD15100	1.6	1.5	100	175	94	0.32
CD15120	1.6	1.5	120	210	95	0.27
CD15140	1.6	1.5	140	240	96	0.23
CD15160	1.6	1.5	160	280	97	0.2
CD15180	1.6	1.5	180	312	98	0.17
CD15200	1.6	1.5	200	350	99	0.14

2.0 mm Rope Mesh
Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2
CD2035	2.9	2	35	61	67	1.85
CD2040	2.9	2	40	70	70	2.15
CD2050	2.9	2	50	90	77	1.53
CD2060	2.9	2	60	105	81	1.2
CD2070	2.9	2	70	120	84	0.95
CD2080	2.9	2	80	140	86	0.78
CD20100	2.9	2	100	175	89	0.57
CD20120	2.9	2	120	210	91	0.48
CD20140	2.9	2	140	240	92	0.4
CD20160	2.9	2	160	280	93	0.34
CD20180	2.9	2	180	312	94	0.29
CD20200	2.9	2	200	350	95	0.24

3.0 mm Rope Mesh
Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2
CD3040	7	3	40	70	37	4.29
CD3050	7	3	50	87	51	3.1
CD3060	7	3	60	104	60	2.45
CD3070	7	3	70	121	66	1.95
CD3080	7	3	80	139	71	1.63
CD30100	7	3	100	173	76	1.19
CD30120	7	3	120	208	80	1.02
CD30140	7	3	140	242	83	0.85
CD30160	7	3	160	277	85	0.74
CD30180	7	3	180	312	87	0.63
CD30200	7	3	200	346	89	0.52

Common Specifications:

Hole Size (Opening)	1.2MM(3/64) (7 x 7 )	1.6MM(1/16) (7 x 7 )	2.0MM(5/64) (7 x 7 )	2.4MM(3/32) (7 x 7 )	3.2MM(1/8) (7 x 19 )
20 x 35mm	QJ-1235
25 x 42mm	QJ -1225	QJ -1625
30 x 52mm	QJ -1230	QJ -1630	QJ -2030
35 x 60mm	QJ -1235	QJ -1635	QJ -2035
38 x 66mm	QJ -1238	QJ -1638	QJ -2038	QJ -2438
40 x 69mm	QJ -1240	QJ -1640	QJ -2040	QJ -2440	QJ -3040
50 x 86mm	QJ -1250	QJ -1650	QJ -2050	QJ -2450	QJ -3050
60 x 104mm	QJ -1260	QJ -1660	QJ -2060	QJ -2460	QJ -3060
70 x 120mm	QJ -1270	QJ -1670	QJ -2070	QJ -2470	QJ -3070
76 x 131mm	QJ -1276	QJ -1676	QJ -2076	QJ -2476	QJ -3076
80 x 138mm	QJ -1280	QJ -1680	QJ -2080	QJ -2480	QJ -3080
90 x 154mm	QJ -1290	QJ -1690	QJ -2090	QJ -2490	QJ -3090
100 x 173mm	QJ -12100	QJ -16100	QJ -20100	QJ -24100	QJ -30100
120 x 206mm	QJ -12120	QJ -16120	QJ -20120	QJ -24120	QJ -30120

Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Rope Construction	Rope Diameter		Aperture	Breaking Force
Rope Construction	inch	mm	mm	kn
7 × 19	1/8	3.2	120 × 208	7.38
7 × 19	1/8	3.2	100 × 173	7.38
7 × 19	1/8	3.2	90 × 156	7.38
7 × 7	3/32	2.4	100 × 173	4.18
7 × 7	3/32	2.4	90 × 156	4.18
7 × 7	3/32	2.4	80 × 139	4.18
7 × 7	3/32	2.4	70 × 121	4.18
7 × 7	5/64	2.0	100 × 173	3.17
7 × 7	5/64	2.0	90 × 156	3.17
7 × 7	5/64	2.0	80 × 139	3.17
7 × 7	5/64	2.0	70 × 121	3.17
7 × 7	1/16	1.6	80 × 139	2.17
7 × 7	1/16	1.6	70 × 121	2.17
7 × 7	1/16	1.6	60 × 104	2.17
7 × 7	1/16	1.6	51 × 87	2.17
7 × 7	3/64	1.2	80 × 139	1.22
7 × 7	3/64	1.2	60 × 104	1.22
7 × 7	3/64	1.2	50 × 87	1.22
7 × 7	3/64	1.2	40 × 69	1.22

Woven Wire Mesh Feature:

Handle Made
Environmental Protection
Extensive Use
Premium Quality
Direct from Factory
Product Life Cycle
Lifetime Support

Woven Wire Mesh Application:

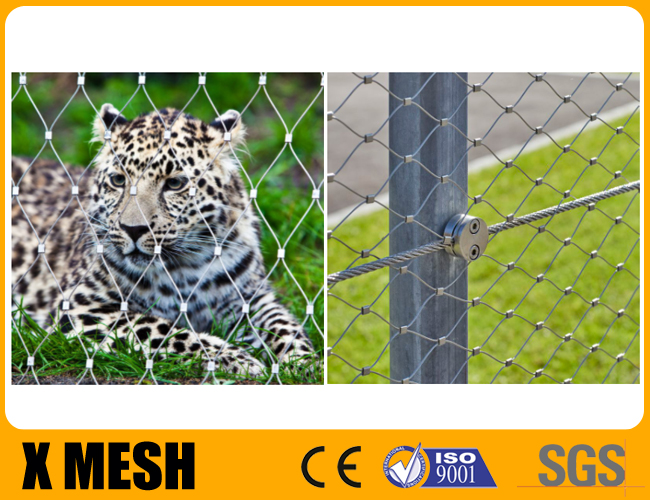

In combination with architectural ropes Webnet is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
